FIVE STEPS TO PLC PROGRAM DEVELOPMENT

Programming a PLC can sometimes be a daunting task. The best method is to break the task into some smaller steps. These are the steps that I have used for years to develop PLC programs. We will apply them to a die stamping application.

Step 1 – Define the task:

What has to happen? This is written down and summarized. You may have to ask several different people how the machine is to operate. Going back to individuals when there is a conflict on specific aspects of the operation. This step is number one for a reason with PLC program development.

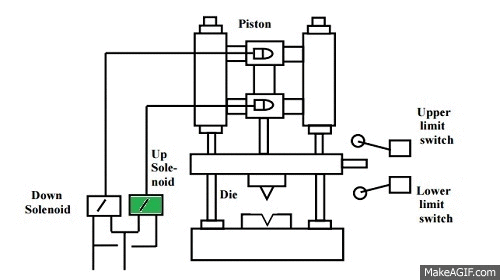

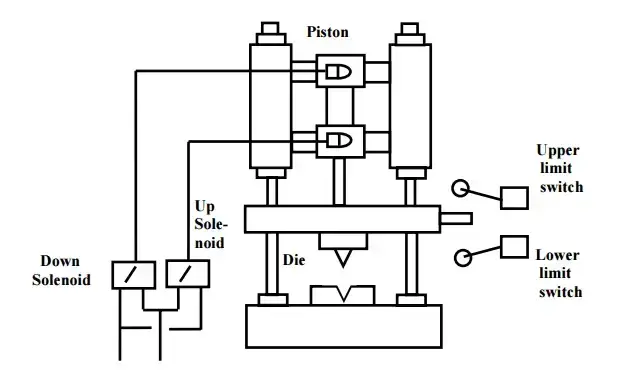

A master switch is used to start the process and to shut it down. Two sensors: an upper limit switch that indicates when the piston is fully retracted and a lower limit switch that indicates when the piston is fully extended. When the master switch is turned on the piston reciprocates between the extended and retracted positions. This is achieved with an up and down solenoid. When the master switch is turned off, the piston returns to the retracted position, and all solenoids are off.

Step 2 – Define the Inputs and Outputs:

Based on the information in step 1, you determine the inputs and outputs to the PLC required to develop what has to happen.

Inputs:
Master Switch – On/Off
Upper Limit Switch – On/Off
Lower Limit Switch – On/Off

Outputs:
Down Solenoid – On/Off
Up Solenoid – On/Off



Step 3 – Develop a logical sequence of operation:

This is where the majority of time is spent in PLC program development. Steps 1 and 2 allow you to systematically express what has to happen in the PLC program. Based on the logic, you may have to modify the inputs/outputs or sequence of the program. This is the easiest place to make changes.

This can be done with the use of a flow chart or sequence table. You can use anything to fully understand the logic of the operation before programming. Many people do not use this step and jump straight to programming.

Fully understanding the logic before starting to program can save you time and frustration.

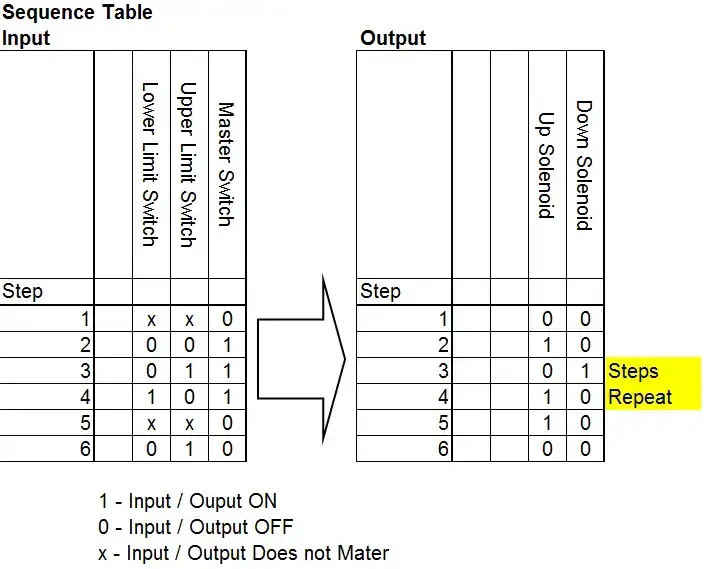

Sequence Table: The following is a sequence table for our die stamping application. I usually review this sequence with the person with the most knowledge of the machine. This can be the designer and/or the machine operator.

How to read the Sequence Table: Follow the steps from left to right, top to bottom. Inputs and outputs are labeled as 1 (ON), 0 (OFF) or X (Does not Matter). Step 1 indicates that it does not matter the upper and lower limit switch positions. The master switch is off, so the up and down solenoids are off. Steps 3 and 4 repeat themselves as long as the master switch is on.

Note: You will notice that at step 2 after the master switch turns on the up solenoid will be activated. So the piston always retracts when the master switch is first turned on.  This operation was picked up in the development of our logical sequence.

Step 4 – Develop the PLC program:

Utilizing the above steps, we will now actually write the plc program. This can be in several different languages. In our case, ladder logic will be used.

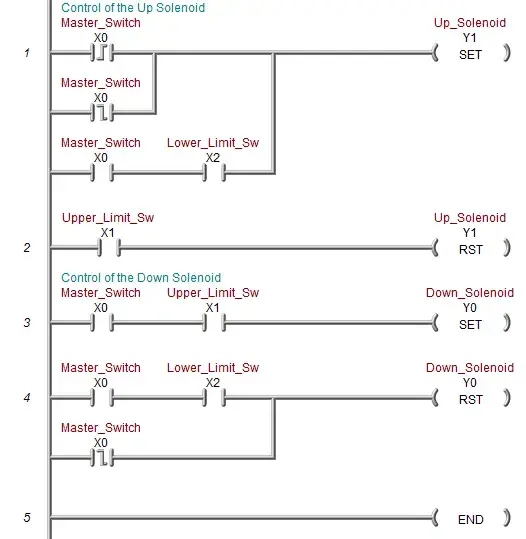

Look at the sequence table with respect to the following logic. I have used Set and Reset conditions so it is easily followed by the sequence table. When the master switch turns on the up solenoid is activated. Notice the first rung is a direct correlation. Follow the rest of the sequence table with this ladder logic.

Document, Document, Document This is a vital part of every program, which will save you time and money when you have to return to the program years later.

Step 5 – Test the program:

Test the logic that you have developed. Once again the previous steps are helpful in this process. PLC program development testing is an important step to test for all conditions of the logic. (Power Cycle, Sensors Fail, Safety, etc.)

Test the program with a simulator or actual machine. Make modifications as necessary. Check with the people most knowledgeable on the machine, to see if it is doing what they expect. Do they need anything else? Follow up after a time frame to see if any problems arise that need to be addressed.

These five steps will help you in your PLC program development.

1. Define the task
2. Define the inputs and outputs
3. Develop a logical sequence of operation
4. Develop the PLC program
5. Test the program

The five steps form the basis of all PLC development. You will notice that the actual programming does not occur until the second last step. Usually, more time is spent on understanding the task and sequence of operation.
